NCB-C6UGRYR-305 23 AWG Solid bare Copper

0 out of 5

Mutual Capacitance: 5.6nF/100m nominal
Characteristic Impedance: 100±15%
Nominal Velocity of Propagation: 69%
Conductor Resistance: < 9.38/100m
Mutual Capacitance: < 5.6nF/100m
Resistance Unbalance: 5% Max
Capacitance Unbalance: 330pF/100m
Delay Skew: < 45nS
Conductor Diameter : 0.520mm Nominal
Insulation Diameter: 0.940mm Nominal
Insulation Material: HD-PE
Cable Diameter: 5.7mm

Product successfully added to the Quote List

Category: Copper Cables

Description

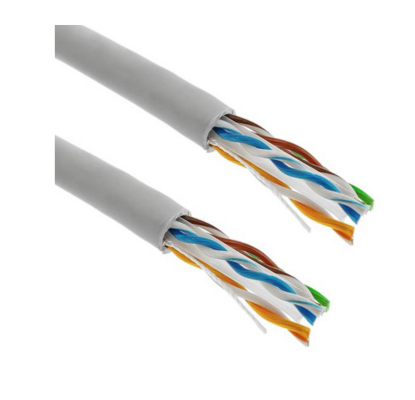

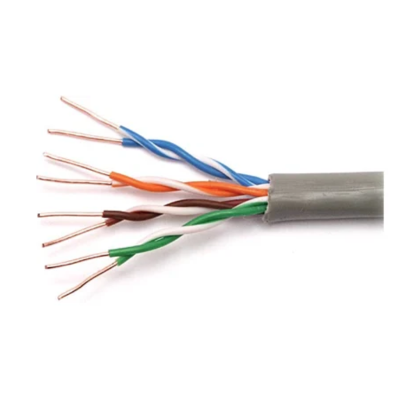

4 Pairs Unshielded Twisted Pair (UTP) Cable
Conductor Metal: Solid Bare Copper with 24 AWG
Color Code: Gray
Jacket Material: PVC UL94V-0
PE Central Cross separator

NCB-C6UGRYR-305
