Description
- 4 Pairs Foilded Twisted Pair (FTP) Cable
- Conductor Metal: Solid Bare Copper with 23 AWG
- Shield: Aluminum Polyester Foil
- Color Code: Gray
- Drain Wire: 26 AWG
- Jacket Material: PVC UL94V-0
- PE Central Cross separator

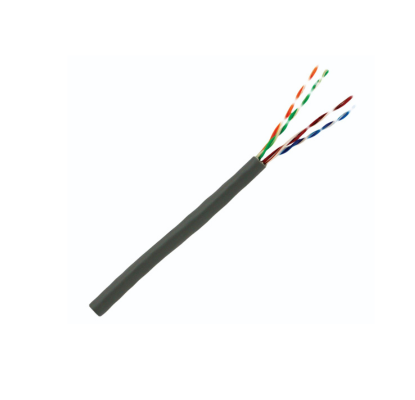

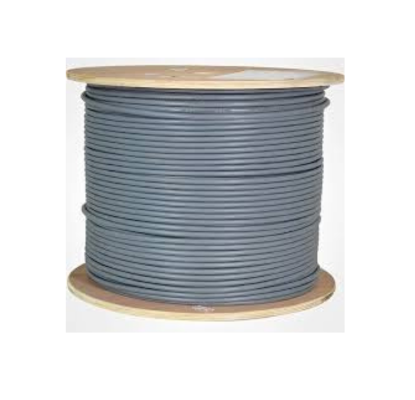

NCB-C6SGRYR-305 Cat6 23AWG FTP Cable
- Mutual Capacitance: 5.6nF/100m nominal
- Characteristic Impedance: 100±15%
- Nominal Velocity of Propagation: 69%
- Conductor Resistance: < 9.38/100m
- Mutual Capacitance: < 5.6nF/100m
- Resistance Unbalance: 5% Max
- Capacitance Unbalance: 330pF/100m
- Delay Skew: < 45nS
- Conductor Diameter: 0.560mm Nominal
- Insulation Diameter: 1.14 Nominal
- Insulation Material: HD-PE
- Cable Diameter : 7.00mm Nominal
